Advanced QS Optimization
In this tutorial we will show an example of “precise” QS optimization using a multigrid approach, and using constrained optimization
[1]:
import sys
import os
sys.path.insert(0, os.path.abspath("."))
sys.path.append(os.path.abspath("../../../"))
If you have access to a GPU, uncomment the following two lines before any DESC or JAX related imports. You should see about an order of magnitude speed improvement with only these two lines of code!
[ ]:
# from desc import set_device
# set_device("gpu")
As mentioned in DESC Documentation on performance tips, one can use compilation cache directory to reduce the compilation overhead time. Note: One needs to create jax-caches folder manually.
[3]:
# import jax
# jax.config.update("jax_compilation_cache_dir", "../jax-caches")
# jax.config.update("jax_persistent_cache_min_entry_size_bytes", -1)
# jax.config.update("jax_persistent_cache_min_compile_time_secs", 0)
[4]:
import numpy as np
from desc.continuation import solve_continuation_automatic
from desc.equilibrium import EquilibriaFamily, Equilibrium
from desc.geometry import FourierRZToroidalSurface
from desc.grid import LinearGrid
from desc.objectives import (
AspectRatio,
FixBoundaryR,
FixBoundaryZ,
FixCurrent,
FixPressure,
FixPsi,
ForceBalance,
ObjectiveFunction,
QuasisymmetryTwoTerm,
GenericObjective,
ObjectiveFromUser,
)
from desc.optimize import Optimizer
Initial Guess
We start by creating an initial equilibrium and solving a standard fixed boundary problem:
[9]:
# create initial surface. Aspect ratio ~ 8, circular cross section with slight
# axis torsion to make it nonplanar
surf = FourierRZToroidalSurface(
R_lmn=[1, 0.125, 0.1],
Z_lmn=[-0.125, -0.1],
modes_R=[[0, 0], [1, 0], [0, 1]],
modes_Z=[[-1, 0], [0, -1]],
NFP=4,
)
# create initial equilibrium. Psi chosen to give B ~ 1 T. Could also give profiles here,
# default is zero pressure and zero current
eq = Equilibrium(M=4, N=4, Psi=0.04, surface=surf)
# this is usually all you need to solve a fixed boundary equilibrium
eq0 = solve_continuation_automatic(eq, verbose=0)[-1]
# it will be helpful to store intermediate results
eqfam = EquilibriaFamily(eq0)
Multigrid method with proximal optimizer
By “multigrid” method we mean we will start by optimizing over boundary modes with \(|m|, |n| \leq 1\), then \(|m|, |n| \leq 2\) and so on. To do this we’ll define a helper function that will create the necessary constraints and objectives for a given maximum mode number \(k\).
By a “proximal” optimizer we mean one that handles the equilibrium constraint by re-solving a fixed boundary equilibrium problem at each step, given the current position of the boundary. This is made more efficient by using a perturbed estimate based on the previous step as a warm start to the equilibrium sub-problem.
[10]:
def run_qh_step(k, eq):
"""Run a step of the precise QH optimization example from Landreman & Paul."""
# this step will only optimize boundary modes with |m|,|n| <= k
# create grid where we want to minimize QS error. Here we do it on 3 surfaces
grid = LinearGrid(
M=eq.M_grid, N=eq.N_grid, NFP=eq.NFP, rho=np.array([0.6, 0.8, 1.0]), sym=True
)
# we create an ObjectiveFunction, in this case made up of multiple objectives
# which will be combined in a least squares sense
objective = ObjectiveFunction(
(
# pass in the grid we defined, and don't forget the target helicity!
QuasisymmetryTwoTerm(eq=eq, helicity=(1, eq.NFP), grid=grid),
# try to keep the aspect ratio about the same
AspectRatio(eq=eq, target=8, weight=100),
),
)
# as opposed to SIMSOPT and STELLOPT where variables are assumed fixed, in DESC
# we assume variables are free. Here we decide which ones to fix, starting with
# the major radius (R mode = [0,0,0]) and all modes with m,n > k
R_modes = np.vstack(
(
[0, 0, 0],
eq.surface.R_basis.modes[
np.max(np.abs(eq.surface.R_basis.modes), 1) > k, :
],
)
)
Z_modes = eq.surface.Z_basis.modes[
np.max(np.abs(eq.surface.Z_basis.modes), 1) > k, :
]
# next we create the constraints, using the mode number arrays just created
# if we didn't pass those in, it would fix all the modes (like for the profiles)
constraints = (
ForceBalance(eq=eq),
FixBoundaryR(eq=eq, modes=R_modes),
FixBoundaryZ(eq=eq, modes=Z_modes),
FixPressure(eq=eq),
FixCurrent(eq=eq),
FixPsi(eq=eq),
)
# this is the default optimizer, which re-solves the equilibrium at each step
optimizer = Optimizer("proximal-lsq-exact")
eq_new, history = eq.optimize(
objective=objective,
constraints=constraints,
optimizer=optimizer,
maxiter=20, # we don't need to solve to optimality at each multigrid step
verbose=3,
copy=True, # don't modify original, return a new optimized copy
options={
# Sometimes the default initial trust radius is too big, allowing the
# optimizer to take too large a step in a bad direction. If this happens,
# we can manually specify a smaller starting radius. Each optimizer has a
# number of different options that can be used to tune the performance.
# See the documentation for more info.
"initial_trust_ratio": 0.1,
},
)
return eq_new
Lets look at the initial field:
[11]:
from desc.plotting import plot_boozer_surface

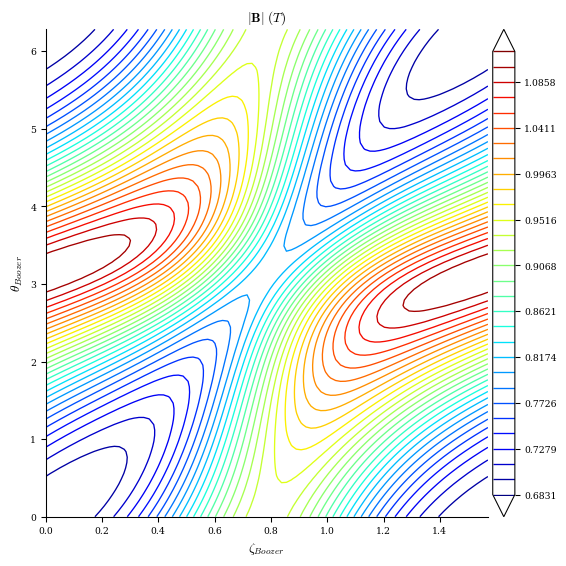

plot_boozer_surface(eq0);
We see that it is vaguely QH like, which is why we’re targeting QH symmetry. Now let’s run the optimization in steps and look at the intermediate result after each step:
[12]:
eq1 = run_qh_step(1, eq0)
eqfam.append(eq1)

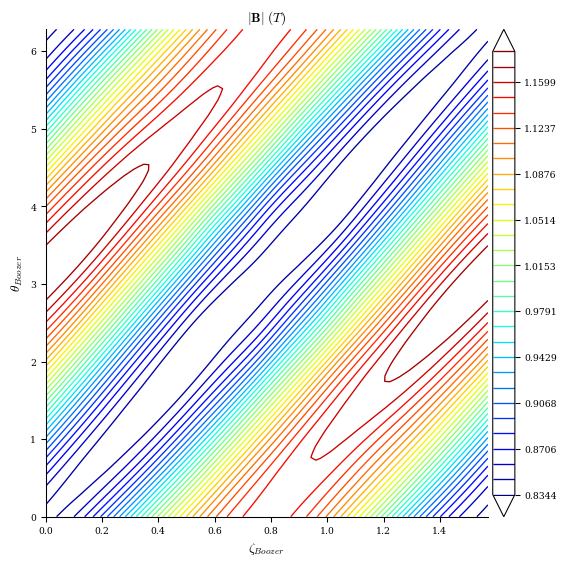

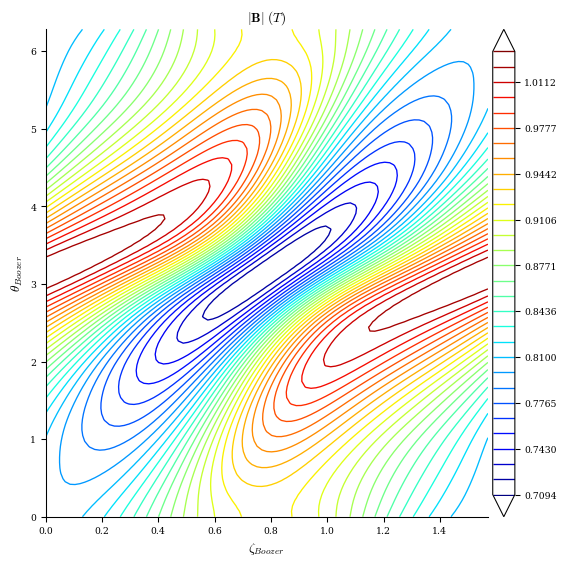

plot_boozer_surface(eq1);
Building objective: QS two-term
Precomputing transforms
Timer: Precomputing transforms = 56.3 ms
Building objective: aspect ratio
Precomputing transforms
Timer: Precomputing transforms = 25.8 ms
Timer: Objective build = 102 ms
Building objective: force
Precomputing transforms
Timer: Precomputing transforms = 61.0 ms
Timer: Objective build = 78.1 ms
Timer: Objective build = 992 us
Timer: Eq Update LinearConstraintProjection build = 84.3 ms
Timer: Proximal projection build = 1.30 sec
Building objective: lcfs R
Building objective: lcfs Z
Building objective: fixed pressure
Building objective: fixed current
Building objective: fixed Psi
Timer: Objective build = 174 ms
Timer: LinearConstraintProjection build = 151 ms
Number of parameters: 8
Number of objectives: 460
Timer: Initializing the optimization = 1.67 sec
Starting optimization
Using method: proximal-lsq-exact
Solver options:
------------------------------------------------------------
Maximum Function Evaluations : 101
Maximum Allowed Total Δx Norm : inf
Scaled Termination : True
Trust Region Method : qr
Initial Trust Radius : 5.668e+01
Maximum Trust Radius : inf
Minimum Trust Radius : 2.220e-16
Trust Radius Increase Ratio : 2.000e+00
Trust Radius Decrease Ratio : 2.500e-01
Trust Radius Increase Threshold : 7.500e-01
Trust Radius Decrease Threshold : 2.500e-01
------------------------------------------------------------
Iteration Total nfev Cost Cost reduction Step norm Optimality
0 1 2.949e+01 2.852e+00
1 5 2.723e+01 2.259e+00 1.231e-02 1.226e+00
2 6 2.582e+01 1.419e+00 4.602e-03 8.559e-01
3 7 2.368e+01 2.133e+00 1.095e-02 6.697e-01
4 8 2.071e+01 2.973e+00 2.264e-02 3.671e-01
5 9 1.831e+01 2.397e+00 4.321e-02 4.348e-01
6 10 1.739e+01 9.241e-01 2.409e-02 1.122e+00
7 11 1.647e+01 9.203e-01 3.711e-02 1.547e-01
8 13 1.587e+01 6.004e-01 1.712e-02 2.024e-01
9 14 1.540e+01 4.630e-01 1.068e-02 2.417e-01
10 15 1.502e+01 3.895e-01 1.666e-02 1.288e+00
11 16 1.338e+01 1.636e+00 2.821e-02 7.097e-01
12 18 1.251e+01 8.681e-01 8.719e-03 2.368e-01
13 19 1.148e+01 1.036e+00 1.253e-02 7.064e-01
14 21 1.068e+01 8.000e-01 1.095e-02 1.158e-01
15 22 9.909e+00 7.674e-01 1.152e-02 5.918e-01
16 23 9.685e+00 2.233e-01 2.157e-02 1.677e+00
17 24 7.983e+00 1.702e+00 1.411e-02 1.112e-01
18 25 7.403e+00 5.802e-01 1.141e-02 1.259e-01
19 26 7.289e+00 1.134e-01 2.362e-02 7.641e-01
20 27 6.777e+00 5.121e-01 8.160e-03 1.169e-01
Warning: Maximum number of iterations has been exceeded.
Current function value: 6.777e+00
Total delta_x: 1.590e-01
Iterations: 20
Function evaluations: 27
Jacobian evaluations: 21
Timer: Solution time = 37.8 sec
Timer: Avg time per step = 1.80 sec
==============================================================================================================
Start --> End
Total (sum of squares): 2.946e+01 --> 6.777e+00,
Maximum absolute Quasi-symmetry (1,4) two-term error: 6.229e-01 --> 5.480e-01 (T^3)
Minimum absolute Quasi-symmetry (1,4) two-term error: 1.964e-04 --> 4.448e-04 (T^3)
Average absolute Quasi-symmetry (1,4) two-term error: 1.501e-01 --> 7.104e-02 (T^3)
Maximum absolute Quasi-symmetry (1,4) two-term error: 5.894e-01 --> 5.186e-01 (normalized)
Minimum absolute Quasi-symmetry (1,4) two-term error: 1.859e-04 --> 4.209e-04 (normalized)
Average absolute Quasi-symmetry (1,4) two-term error: 1.420e-01 --> 6.722e-02 (normalized)
Aspect ratio: 8.000e+00 --> 7.998e+00 (dimensionless)
Maximum absolute Force error: 4.342e+01 --> 1.616e+03 (N)
Minimum absolute Force error: 4.390e-03 --> 2.552e-02 (N)
Average absolute Force error: 3.601e+00 --> 8.598e+01 (N)
Maximum absolute Force error: 4.262e-05 --> 1.587e-03 (normalized)
Minimum absolute Force error: 4.310e-09 --> 2.506e-08 (normalized)
Average absolute Force error: 3.535e-06 --> 8.441e-05 (normalized)
R boundary error: 0.000e+00 --> 0.000e+00 (m)
Z boundary error: 0.000e+00 --> 0.000e+00 (m)
Fixed pressure profile error: 0.000e+00 --> 0.000e+00 (Pa)
Fixed current profile error: 0.000e+00 --> 0.000e+00 (A)
Fixed Psi error: 0.000e+00 --> 0.000e+00 (Wb)
==============================================================================================================
[13]:
eq2 = run_qh_step(2, eq1)
eqfam.append(eq2)

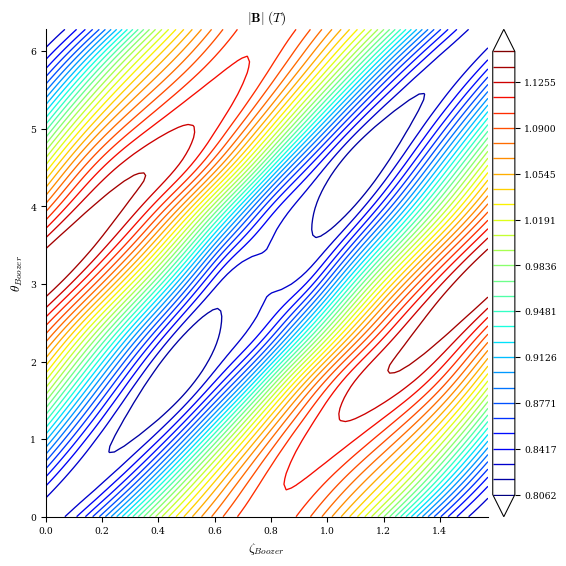

plot_boozer_surface(eq2);
Building objective: QS two-term
Precomputing transforms
Timer: Precomputing transforms = 57.7 ms
Building objective: aspect ratio
Precomputing transforms
Timer: Precomputing transforms = 26.3 ms
Timer: Objective build = 103 ms
Building objective: force
Precomputing transforms
Timer: Precomputing transforms = 65.0 ms
Timer: Objective build = 81.9 ms
Timer: Objective build = 1.03 ms
Timer: Eq Update LinearConstraintProjection build = 102 ms
Timer: Proximal projection build = 1.46 sec
Building objective: lcfs R
Building objective: lcfs Z
Building objective: fixed pressure
Building objective: fixed current
Building objective: fixed Psi
Timer: Objective build = 436 ms
Timer: LinearConstraintProjection build = 1.54 sec
Number of parameters: 24
Number of objectives: 460
Timer: Initializing the optimization = 3.54 sec
Starting optimization
Using method: proximal-lsq-exact
Solver options:
------------------------------------------------------------
Maximum Function Evaluations : 101
Maximum Allowed Total Δx Norm : inf
Scaled Termination : True
Trust Region Method : qr
Initial Trust Radius : 8.710e+01
Maximum Trust Radius : inf
Minimum Trust Radius : 2.220e-16
Trust Radius Increase Ratio : 2.000e+00
Trust Radius Decrease Ratio : 2.500e-01
Trust Radius Increase Threshold : 7.500e-01
Trust Radius Decrease Threshold : 2.500e-01
------------------------------------------------------------
Iteration Total nfev Cost Cost reduction Step norm Optimality
0 1 4.034e+01 1.093e+00
1 4 3.562e+01 4.723e+00 6.933e-03 8.447e-01
2 5 3.307e+01 2.554e+00 7.166e-03 6.279e-01
3 6 2.983e+01 3.237e+00 6.908e-03 6.533e-01
4 7 2.727e+01 2.560e+00 6.849e-03 6.366e-01
5 8 2.529e+01 1.984e+00 6.607e-03 6.035e-01
6 9 2.349e+01 1.793e+00 6.135e-03 5.429e-01
7 10 2.052e+01 2.975e+00 5.482e-03 3.802e-01
8 11 1.464e+01 5.883e+00 9.564e-03 4.578e-01
9 12 1.021e+01 4.424e+00 1.814e-02 2.212e+00
10 13 3.050e+00 7.161e+00 2.698e-02 6.911e-01
11 15 2.100e+00 9.504e-01 1.283e-02 2.600e-01
12 16 1.511e+00 5.888e-01 1.635e-02 5.015e-01
13 18 1.184e+00 3.270e-01 8.574e-03 1.844e-01
14 20 1.079e+00 1.048e-01 4.419e-03 4.029e-02
15 21 9.752e-01 1.042e-01 9.340e-03 1.672e-01
16 23 9.096e-01 6.564e-02 5.453e-03 5.591e-02
17 25 8.836e-01 2.594e-02 3.010e-03 2.369e-02
18 26 8.593e-01 2.435e-02 6.420e-03 1.504e-01
19 28 8.286e-01 3.070e-02 3.110e-03 4.059e-02
20 29 8.166e-01 1.199e-02 6.792e-03 1.979e-01
Warning: Maximum number of iterations has been exceeded.
Current function value: 8.166e-01
Total delta_x: 1.065e-01
Iterations: 20
Function evaluations: 29
Jacobian evaluations: 21
Timer: Solution time = 50.4 sec
Timer: Avg time per step = 2.40 sec
==============================================================================================================
Start --> End
Total (sum of squares): 4.166e+01 --> 8.166e-01,
Maximum absolute Quasi-symmetry (1,4) two-term error: 5.480e-01 --> 1.114e-01 (T^3)
Minimum absolute Quasi-symmetry (1,4) two-term error: 4.448e-04 --> 2.858e-06 (T^3)
Average absolute Quasi-symmetry (1,4) two-term error: 7.104e-02 --> 1.119e-02 (T^3)
Maximum absolute Quasi-symmetry (1,4) two-term error: 1.287e+00 --> 2.616e-01 (normalized)
Minimum absolute Quasi-symmetry (1,4) two-term error: 1.044e-03 --> 6.711e-06 (normalized)
Average absolute Quasi-symmetry (1,4) two-term error: 1.668e-01 --> 2.627e-02 (normalized)
Aspect ratio: 7.998e+00 --> 7.999e+00 (dimensionless)
Maximum absolute Force error: 1.616e+03 --> 1.274e+03 (N)
Minimum absolute Force error: 2.552e-02 --> 2.167e-01 (N)
Average absolute Force error: 8.598e+01 --> 9.647e+01 (N)
Maximum absolute Force error: 2.500e-03 --> 1.970e-03 (normalized)
Minimum absolute Force error: 3.947e-08 --> 3.352e-07 (normalized)
Average absolute Force error: 1.330e-04 --> 1.492e-04 (normalized)
R boundary error: 0.000e+00 --> 0.000e+00 (m)
Z boundary error: 0.000e+00 --> 0.000e+00 (m)
Fixed pressure profile error: 0.000e+00 --> 0.000e+00 (Pa)
Fixed current profile error: 0.000e+00 --> 0.000e+00 (A)
Fixed Psi error: 0.000e+00 --> 0.000e+00 (Wb)
==============================================================================================================
[14]:
eq3 = run_qh_step(3, eq2)
eqfam.append(eq3)
plot_boozer_surface(eq3);
Building objective: QS two-term
Precomputing transforms
Timer: Precomputing transforms = 58.5 ms
Building objective: aspect ratio
Precomputing transforms
Timer: Precomputing transforms = 26.9 ms
Timer: Objective build = 104 ms
Building objective: force
Precomputing transforms
Timer: Precomputing transforms = 62.3 ms
Timer: Objective build = 80.4 ms
Timer: Objective build = 971 us
Timer: Eq Update LinearConstraintProjection build = 76.5 ms
Timer: Proximal projection build = 1.15 sec
Building objective: lcfs R
Building objective: lcfs Z
Building objective: fixed pressure
Building objective: fixed current
Building objective: fixed Psi
Timer: Objective build = 364 ms
Timer: LinearConstraintProjection build = 1.48 sec
Number of parameters: 48
Number of objectives: 460
Timer: Initializing the optimization = 3.12 sec
Starting optimization
Using method: proximal-lsq-exact
Solver options:
------------------------------------------------------------
Maximum Function Evaluations : 101
Maximum Allowed Total Δx Norm : inf
Scaled Termination : True
Trust Region Method : qr
Initial Trust Radius : 9.336e+01
Maximum Trust Radius : inf
Minimum Trust Radius : 2.220e-16
Trust Radius Increase Ratio : 2.000e+00
Trust Radius Decrease Ratio : 2.500e-01
Trust Radius Increase Threshold : 7.500e-01
Trust Radius Decrease Threshold : 2.500e-01
------------------------------------------------------------
Iteration Total nfev Cost Cost reduction Step norm Optimality
0 1 1.134e+00 2.279e-01
1 3 1.095e+00 3.888e-02 1.263e-02 8.014e-01
2 4 6.282e-01 4.668e-01 2.683e-03 2.024e-01
3 5 4.388e-01 1.894e-01 2.806e-03 9.021e-02
4 7 4.153e-01 2.345e-02 1.310e-03 3.544e-02
5 8 4.096e-01 5.755e-03 2.519e-03 7.476e-02
6 9 3.715e-01 3.810e-02 8.986e-04 2.562e-02
7 10 3.671e-01 4.388e-03 1.384e-03 3.763e-02
8 11 3.538e-01 1.329e-02 4.425e-04 1.416e-02
9 12 3.493e-01 4.543e-03 7.308e-04 2.057e-02
10 13 3.427e-01 6.537e-03 7.455e-04 1.431e-02
11 14 3.372e-01 5.553e-03 7.441e-04 1.633e-02
12 15 3.318e-01 5.315e-03 7.461e-04 1.676e-02
13 16 3.267e-01 5.186e-03 7.478e-04 1.710e-02
14 17 3.233e-01 3.400e-03 7.484e-04 1.538e-02
15 18 3.184e-01 4.906e-03 7.457e-04 1.600e-02
16 19 3.139e-01 4.448e-03 7.348e-04 1.694e-02
17 20 3.093e-01 4.603e-03 7.309e-04 1.580e-02
18 21 3.048e-01 4.486e-03 7.273e-04 1.542e-02
19 22 3.006e-01 4.177e-03 7.231e-04 1.527e-02
20 23 2.968e-01 3.822e-03 7.201e-04 1.512e-02
Warning: Maximum number of iterations has been exceeded.
Current function value: 2.968e-01
Total delta_x: 1.973e-02
Iterations: 20
Function evaluations: 23
Jacobian evaluations: 21
Timer: Solution time = 42.3 sec
Timer: Avg time per step = 2.01 sec
==============================================================================================================
Start --> End
Total (sum of squares): 1.133e+00 --> 2.968e-01,
Maximum absolute Quasi-symmetry (1,4) two-term error: 1.114e-01 --> 8.355e-02 (T^3)
Minimum absolute Quasi-symmetry (1,4) two-term error: 2.858e-06 --> 2.441e-06 (T^3)
Average absolute Quasi-symmetry (1,4) two-term error: 1.119e-02 --> 5.567e-03 (T^3)
Maximum absolute Quasi-symmetry (1,4) two-term error: 3.085e-01 --> 2.313e-01 (normalized)
Minimum absolute Quasi-symmetry (1,4) two-term error: 7.913e-06 --> 6.758e-06 (normalized)
Average absolute Quasi-symmetry (1,4) two-term error: 3.097e-02 --> 1.541e-02 (normalized)
Aspect ratio: 7.999e+00 --> 8.000e+00 (dimensionless)
Maximum absolute Force error: 1.274e+03 --> 6.911e+02 (N)
Minimum absolute Force error: 2.167e-01 --> 2.130e-02 (N)
Average absolute Force error: 9.647e+01 --> 6.973e+01 (N)
Maximum absolute Force error: 2.139e-03 --> 1.161e-03 (normalized)
Minimum absolute Force error: 3.640e-07 --> 3.577e-08 (normalized)
Average absolute Force error: 1.620e-04 --> 1.171e-04 (normalized)
R boundary error: 0.000e+00 --> 0.000e+00 (m)
Z boundary error: 0.000e+00 --> 0.000e+00 (m)
Fixed pressure profile error: 0.000e+00 --> 0.000e+00 (Pa)
Fixed current profile error: 0.000e+00 --> 0.000e+00 (A)
Fixed Psi error: 0.000e+00 --> 0.000e+00 (Wb)
==============================================================================================================
We see that after only 3 multigrid steps we have achieved very straight contours of magnetic field strength. These could be further refined by running for more iterations, using higher resolution, tighter tolerances, etc.

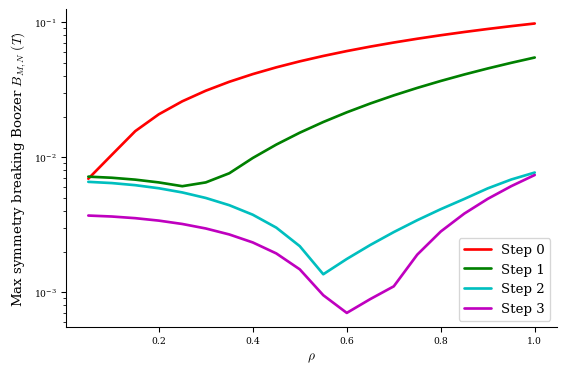

As a final comparison, we’ll look at the maximum symmetry breaking boozer harmonic for each step of the equilibrium
[15]:
import matplotlib.pyplot as plt
from desc.plotting import plot_boozer_modes, plot_boundaries
fig, ax = plt.subplots()
colors = ["r", "g", "c", "m"]
for i, (eq, color) in enumerate(zip(eqfam, colors)):
plot_boozer_modes(
eq, color=color, helicity=(1, eq.NFP), max_only=True, label=f"Step {i}", ax=ax
);
Constrained Optimization
Next, we’ll do a similar optimization but this time treating it as a constrained optimization problem, where we attempt to minimize QS error subject to more complicated constraints. We’ll start with the same QS objective:
[16]:
# create grid where we want to minimize QS error. Here we do it on 3 surfaces
grid = LinearGrid(
M=eq0.M_grid, N=eq0.N_grid, NFP=eq0.NFP, rho=np.array([0.6, 0.8, 1.0]), sym=True
)
objective = ObjectiveFunction(
(
# we use a GenericObjective here for demonstration purposes, we could alternatively
# have used `QuasisymmetryTwoTerm(eq=eq0, helicity=(1, eq.NFP), grid=grid)`,the already-existing objective for two-term QS
GenericObjective(
f="f_C",
thing=eq0,
# pass in the grid we defined
grid=grid,
# and don't forget the target helicity!
# two-term QS is known in the data index as "f_C" and requires "helicity" as a kwarg,
# we specify this for GenericObjective through compute_kwargs
compute_kwargs={"helicity": (1, eq.NFP)},
name="QS Two-Term",
),
),
)
For constraints, we’ll include the standard force balance to start. In the previous example, fixing certain boundary modes served as a form of regularization to prevent the solution from going into a bad local minimum. In this case however, instead of fixing a range of boundary modes we will only fix the \(R_{00}\) mode, and include constraints on aspect ratio, volume, and elongation to keep the solution from going off in a bad direction.
Finally, we also include a constraint on the average rotational transform, and on the mirror ratio at the surface (which we will manually compute to demonstrate using ObjectiveFromUser):
[17]:
from desc.objectives import Elongation, RotationalTransform, Volume, ObjectiveFromUser
from desc.integrals import surface_min, surface_max
# Mirror ratio, manually computed from "|B|"
def fun_mirror_ratio(grid, data):
# compute max and min of |B| on each flux surface in the grid
## we have utility functions which, given a quantity computed on a grid,
## return the max or min of that quantity on each coordinate surface
max_tz_B = surface_max(grid=grid, x=data["|B|"], surface_label="rho")
min_tz_B = surface_min(grid=grid, x=data["|B|"], surface_label="rho")
# to avoid issues with array shapes, these two arrays (max_tz_B and min_tz_B)
# are still the same shape as data["|B|"] i.e. still are 1-D arrays of length grid.num_nodes,
# (i.e. there are data corresponding to nodes (rho, theta, zeta) = (1.0, 0, 0) and (1.0, pi, 0),
# which have the same max_tz_B). This is useful if we, for instance, wanted to multiply
# a flux-surface quantity like max_tz_B with a non-flux-surface quantity like sqrt(g)
# without needing to worry about shape mismatches.
# However, since we only need these quantities on each flux surface from
# here on out, we can use the grid.compress function to reduce these quantities
# down to just the values at each unique rho surface
max_tz_B = grid.compress(max_tz_B, surface_label="rho")
min_tz_B = grid.compress(min_tz_B, surface_label="rho")
# now max_tz_B and min_tz_B are just 1-D arrays of size grid.num_rho
# Finally, compute the mirror ratio using the above max/min on each flux surface
mirror_ratio = (max_tz_B - min_tz_B) / (min_tz_B + max_tz_B)
return mirror_ratio
# alternatively, "mirror ratio" is something that can be computed in the data index
# directly (see List of Variables docs), so can replace entirety of the above function code with this return statement
# return grid.compress(data["mirror ratio"])
# or can just use GenericObjective(f="mirror ratio", thing=eq) or the already-existing objective, MirrorRatio(eq)
obj_mirror_ratio = ObjectiveFromUser(
fun=fun_mirror_ratio,
thing=eq0,
grid=LinearGrid(rho=1.0, M=eq.M_grid, N=eq.N_grid, NFP=eq.NFP),
bounds=(0.18, 0.22),
name="my mirror ratio",
)
constraints = (
ForceBalance(eq=eq0),
# try to keep the aspect ratio between 7 and 9
AspectRatio(eq=eq0, bounds=(7, 9)),
# similarly, try to keep it from getting too elongated
Elongation(eq=eq0, bounds=(0, 3)),
# Keep volume the same as the initial volume
Volume(eq=eq0, target=eq0.compute("V")["V"]),
# target for average iota
RotationalTransform(eq=eq0, target=1.1, loss_function="mean"),
# bounds for mirror ratio
obj_mirror_ratio,
# fix major radius
FixBoundaryR(eq=eq0, modes=[0, 0, 0]),
# fix vacuum profiles
FixPressure(eq=eq0),
FixCurrent(eq=eq0),
FixPsi(eq=eq0),
)
Finally, we’ll use an optimizer that can handle general nonlinear constraints (the proximal-lsq-exact optimizer can only handle equilibrium constraints such as ForceBalance and regular linear constraints like Fix*). In this case we use a least-squares augmented Lagrangian method.
[18]:
optimizer = Optimizer("lsq-auglag")
eqa, history = eq0.optimize(
objective=objective,
constraints=constraints,
optimizer=optimizer,
# each iteration of the augmented Lagrangian optimizer is cheaper than a step of a
# proximal optimizer, but it generally requires more iterations to converge
maxiter=200,
copy=True,
verbose=3,
options={},
)
Building objective: QS Two-Term
Timer: Objective build = 58.3 ms
Building objective: lcfs R
Building objective: fixed pressure
Building objective: fixed current
Building objective: fixed Psi
Building objective: self_consistency R
Building objective: self_consistency Z
Building objective: lambda gauge
Building objective: axis R self consistency
Building objective: axis Z self consistency
Timer: Objective build = 162 ms
Building objective: force
Precomputing transforms
Timer: Precomputing transforms = 67.0 ms
Building objective: aspect ratio
Precomputing transforms
Timer: Precomputing transforms = 25.9 ms
Building objective: elongation
Precomputing transforms
Timer: Precomputing transforms = 26.1 ms
Building objective: volume
Precomputing transforms
Timer: Precomputing transforms = 25.3 ms
Building objective: rotational transform
Precomputing transforms
Timer: Precomputing transforms = 716 ms
Building objective: my mirror ratio
Timer: Objective build = 1.66 sec
Timer: LinearConstraintProjection build = 2.11 sec
Timer: LinearConstraintProjection build = 99.5 ms
Number of parameters: 200
Number of objectives: 459
Number of equality constraints: 852
Number of inequality constraints: 3
Timer: Initializing the optimization = 4.62 sec
Starting optimization
Using method: lsq-auglag
Solver options:
------------------------------------------------------------
Maximum Function Evaluations : 1001
Maximum Allowed Total Δx Norm : inf
Scaled Termination : True
Trust Region Method : qr
Initial Trust Radius : 2.063e-01
Maximum Trust Radius : inf
Minimum Trust Radius : 2.220e-16
Trust Radius Increase Ratio : 4.000e+00
Trust Radius Decrease Ratio : 2.500e-01
Trust Radius Increase Threshold : 7.500e-01
Trust Radius Decrease Threshold : 5.000e-01
Alpha Omega : 1.000e+00
Beta Omega : 1.000e+00
Alpha Eta : 1.000e-01
Beta Eta : 9.000e-01
Omega : 1.000e-02
Eta : 1.000e-02
Tau : 9.000e-01
------------------------------------------------------------
Iteration Total nfev Cost Cost reduction Step norm Optimality Constr viol. Penalty param max(|mltplr|)
0 1 3.290e+01 7.512e+00 8.523e-01 1.000e+01 0.000e+00
1 2 3.002e+01 2.884e+00 3.994e-03 7.097e+00 8.531e-01 1.000e+01 0.000e+00
2 3 2.042e+01 9.597e+00 1.789e-02 5.589e+00 8.561e-01 1.000e+01 0.000e+00
3 4 2.578e+00 1.784e+01 7.964e-02 1.547e+00 8.594e-01 1.000e+01 0.000e+00
4 5 1.666e+00 9.120e-01 3.648e-01 9.408e-01 5.652e-01 1.000e+01 0.000e+00
5 6 4.820e-01 1.184e+00 2.318e-01 2.535e-01 6.174e-01 1.000e+01 0.000e+00
6 7 5.697e-01 -8.775e-02 3.411e-01 2.653e-01 4.944e-01 1.000e+01 0.000e+00
7 9 4.685e-01 1.012e-01 2.445e-01 2.154e-01 4.668e-01 1.000e+01 0.000e+00
8 10 4.190e-01 4.950e-02 2.197e-01 1.492e-01 4.222e-01 1.000e+01 0.000e+00
9 11 2.683e-01 1.506e-01 8.007e-02 2.853e-02 4.355e-01 1.000e+01 0.000e+00
10 12 2.252e-01 4.314e-02 5.635e-02 1.659e-01 4.026e-01 1.000e+01 0.000e+00
11 13 2.366e-01 -1.139e-02 2.101e-01 2.607e+00 2.496e-01 1.000e+01 0.000e+00
12 16 8.823e-02 1.484e-01 1.744e-01 1.995e-01 2.033e-01 1.000e+01 0.000e+00
13 18 6.253e-02 2.569e-02 8.369e-02 2.145e-02 1.698e-01 1.000e+01 0.000e+00
14 20 4.944e-02 1.309e-02 7.209e-02 2.199e-02 1.347e-01 1.000e+01 0.000e+00
15 22 4.363e-02 5.807e-03 7.704e-02 2.400e-02 1.059e-01 1.000e+01 0.000e+00
16 24 4.015e-02 3.485e-03 6.892e-02 2.300e-02 8.266e-02 1.000e+01 0.000e+00
17 26 3.755e-02 2.602e-03 6.304e-02 2.035e-02 6.626e-02 1.000e+01 0.000e+00
18 28 3.498e-02 2.571e-03 5.208e-02 3.000e-02 5.485e-02 1.000e+01 0.000e+00
19 30 3.193e-02 3.048e-03 4.268e-02 2.856e-02 4.595e-02 1.000e+01 0.000e+00
20 32 2.923e-02 2.697e-03 3.282e-02 2.294e-02 3.902e-02 1.000e+01 0.000e+00
21 34 2.663e-02 2.601e-03 2.609e-02 1.836e-02 3.410e-02 1.000e+01 0.000e+00
22 36 2.447e-02 2.163e-03 2.206e-02 1.807e-02 3.029e-02 1.000e+01 0.000e+00
23 38 2.259e-02 1.873e-03 2.013e-02 1.700e-02 2.733e-02 1.000e+01 0.000e+00
24 40 2.086e-02 1.734e-03 1.929e-02 1.642e-02 2.480e-02 1.000e+01 0.000e+00
25 42 1.941e-02 1.449e-03 1.935e-02 1.554e-02 2.265e-02 1.000e+01 0.000e+00
26 44 1.803e-02 1.383e-03 1.997e-02 1.534e-02 2.066e-02 1.000e+01 0.000e+00
27 46 1.688e-02 1.147e-03 2.118e-02 2.575e-02 1.892e-02 1.000e+01 0.000e+00
28 48 1.573e-02 1.148e-03 2.350e-02 1.501e-02 1.726e-02 1.000e+01 0.000e+00
29 50 1.477e-02 9.644e-04 2.344e-02 1.607e-02 1.628e-02 1.000e+01 0.000e+00
30 52 1.383e-02 9.359e-04 2.404e-02 2.249e-02 1.576e-02 1.000e+01 0.000e+00
31 54 1.299e-02 8.423e-04 2.717e-02 1.902e-02 1.520e-02 1.000e+01 0.000e+00
32 56 1.222e-02 7.730e-04 2.720e-02 2.091e-02 1.462e-02 1.000e+01 0.000e+00
33 58 1.150e-02 7.130e-04 2.761e-02 2.240e-02 1.404e-02 1.000e+01 0.000e+00
34 60 1.083e-02 6.743e-04 2.773e-02 2.327e-02 1.357e-02 1.000e+01 0.000e+00
35 62 1.080e-02 3.351e-05 2.712e-02 2.536e-02 1.776e-02 1.000e+01 0.000e+00
36 63 9.390e-03 1.408e-03 2.722e-02 2.119e-02 1.354e-02 1.000e+01 0.000e+00
37 65 9.399e-03 -9.048e-06 2.599e-02 2.380e-02 1.658e-02 1.000e+01 0.000e+00
38 66 8.067e-03 1.332e-03 2.556e-02 1.733e-02 1.355e-02 1.000e+01 0.000e+00
39 68 7.956e-03 1.109e-04 2.391e-02 1.985e-02 1.563e-02 1.000e+01 0.000e+00
40 69 6.775e-03 1.181e-03 2.363e-02 1.293e-02 1.348e-02 1.000e+01 0.000e+00
41 71 6.537e-03 2.375e-04 2.175e-02 1.577e-02 1.494e-02 1.000e+01 0.000e+00
42 73 5.566e-03 9.710e-04 2.144e-02 9.391e-03 1.367e-02 1.000e+01 0.000e+00
43 75 5.251e-03 3.155e-04 2.032e-02 1.233e-02 1.430e-02 1.000e+01 0.000e+00
44 77 4.532e-03 7.190e-04 1.878e-02 5.660e-03 1.407e-02 1.000e+01 0.000e+00
45 79 4.271e-03 2.606e-04 1.865e-02 8.909e-03 1.428e-02 1.000e+01 0.000e+00
46 81 3.879e-03 3.925e-04 1.557e-02 8.191e-03 1.502e-02 1.000e+01 0.000e+00
47 83 3.616e-03 2.628e-04 1.624e-02 7.937e-03 1.417e-02 1.000e+01 0.000e+00
48 85 3.307e-03 3.089e-04 1.400e-02 7.147e-03 1.496e-02 1.000e+01 0.000e+00
49 87 3.211e-03 9.612e-05 1.286e-02 1.053e-02 1.499e-02 1.000e+01 0.000e+00
50 89 2.979e-03 2.320e-04 1.141e-02 8.149e-03 1.505e-02 1.000e+01 0.000e+00
51 91 2.879e-03 9.981e-05 1.091e-02 1.095e-02 1.542e-02 1.000e+01 0.000e+00
52 93 2.715e-03 1.638e-04 9.967e-03 7.512e-03 1.542e-02 1.000e+01 0.000e+00
53 95 2.590e-03 1.253e-04 9.469e-03 9.941e-03 1.549e-02 1.000e+01 0.000e+00
54 97 2.485e-03 1.049e-04 8.950e-03 6.841e-03 1.559e-02 1.000e+01 0.000e+00
55 99 2.366e-03 1.190e-04 8.592e-03 8.605e-03 1.551e-02 1.000e+01 0.000e+00
56 101 2.295e-03 7.114e-05 9.146e-03 6.396e-03 1.522e-02 1.000e+01 0.000e+00
57 103 2.188e-03 1.069e-04 8.589e-03 8.903e-03 1.536e-02 1.000e+01 0.000e+00
58 104 2.147e-03 4.069e-05 8.792e-03 7.278e-03 1.519e-02 1.000e+01 0.000e+00
59 106 2.057e-03 9.014e-05 9.037e-03 8.932e-03 1.541e-02 1.000e+01 0.000e+00
60 107 2.051e-03 6.651e-06 9.072e-03 8.449e-03 1.508e-02 1.000e+01 0.000e+00
61 108 1.930e-03 1.208e-04 9.044e-03 8.807e-03 1.516e-02 1.000e+01 0.000e+00
62 109 1.991e-03 -6.069e-05 9.399e-03 1.056e-02 1.502e-02 1.000e+01 0.000e+00
63 110 1.868e-03 1.229e-04 9.907e-03 9.287e-03 1.494e-02 1.000e+01 0.000e+00
64 111 1.919e-03 -5.103e-05 9.639e-03 1.156e-02 1.483e-02 1.000e+01 0.000e+00
65 112 1.776e-03 1.425e-04 1.017e-02 1.060e-02 1.454e-02 1.000e+01 0.000e+00
66 113 1.810e-03 -3.416e-05 9.531e-03 1.147e-02 1.448e-02 1.000e+01 0.000e+00
67 114 1.692e-03 1.188e-04 1.050e-02 1.122e-02 1.402e-02 1.000e+01 0.000e+00
68 115 1.724e-03 -3.204e-05 9.713e-03 1.178e-02 1.408e-02 1.000e+01 0.000e+00
69 116 1.598e-03 1.251e-04 1.076e-02 1.142e-02 1.335e-02 1.000e+01 0.000e+00
70 117 1.612e-03 -1.319e-05 9.931e-03 1.201e-02 1.356e-02 1.000e+01 0.000e+00
71 118 1.502e-03 1.098e-04 1.092e-02 1.159e-02 1.257e-02 1.000e+01 0.000e+00
72 119 1.487e-03 1.510e-05 9.884e-03 1.323e-02 1.297e-02 1.000e+01 0.000e+00
73 120 1.407e-03 8.022e-05 1.057e-02 1.136e-02 1.169e-02 1.000e+01 0.000e+00
74 121 1.358e-03 4.881e-05 1.016e-02 1.259e-02 1.226e-02 1.000e+01 0.000e+00
75 122 1.290e-03 6.759e-05 1.055e-02 1.084e-02 1.073e-02 1.000e+01 0.000e+00
76 124 1.236e-03 5.370e-05 1.021e-02 1.236e-02 1.143e-02 1.000e+01 0.000e+00
77 125 1.180e-03 5.682e-05 1.034e-02 1.036e-02 9.769e-03 1.000e+01 0.000e+00
78 127 1.099e-03 8.032e-05 9.565e-03 1.135e-02 1.002e-02 1.000e+01 0.000e+00
79 128 1.061e-03 3.878e-05 9.942e-03 1.004e-02 8.854e-03 1.000e+01 0.000e+00
80 130 9.844e-04 7.618e-05 8.775e-03 1.051e-02 9.044e-03 1.000e+01 0.000e+00
81 131 9.483e-04 3.612e-05 9.135e-03 8.726e-03 7.958e-03 1.000e+01 0.000e+00
82 133 8.646e-04 8.362e-05 8.764e-03 7.923e-03 8.103e-03 1.000e+01 0.000e+00
83 135 8.313e-04 3.334e-05 1.027e-02 6.531e-03 7.061e-03 1.000e+01 0.000e+00
84 137 7.559e-04 7.539e-05 1.016e-02 5.440e-03 7.140e-03 1.000e+01 0.000e+00
85 139 7.253e-04 3.065e-05 9.639e-03 4.505e-03 6.155e-03 1.000e+01 0.000e+00
86 141 6.622e-04 6.306e-05 9.532e-03 3.458e-03 6.191e-03 1.000e+01 0.000e+00
87 143 6.344e-04 2.775e-05 8.880e-03 3.854e-03 5.260e-03 1.000e+01 0.000e+00
88 145 5.860e-04 4.843e-05 8.712e-03 4.525e-03 5.270e-03 1.000e+01 0.000e+00
89 147 5.699e-04 1.613e-05 7.942e-03 5.521e-03 4.463e-03 1.000e+01 0.000e+00
90 149 5.424e-04 2.748e-05 7.562e-03 5.707e-03 4.618e-03 1.000e+01 0.000e+00
91 150 5.549e-04 -1.249e-05 6.699e-03 7.536e-03 4.170e-03 1.000e+01 0.000e+00
92 152 5.429e-04 1.199e-05 6.659e-03 8.280e-03 4.074e-03 1.000e+01 0.000e+00
93 153 5.714e-04 -2.845e-05 7.289e-03 8.983e-03 3.925e-03 1.000e+01 0.000e+00
94 154 6.059e-04 -3.454e-05 7.340e-03 1.153e-02 3.821e-03 1.000e+01 0.000e+00
95 155 6.467e-04 -4.083e-05 9.185e-03 1.391e-02 3.698e-03 1.000e+01 0.000e+00
96 156 3.802e-04 2.665e-04 2.789e-03 5.100e-03 3.669e-03 1.000e+01 3.669e-02
97 157 1.129e-03 -7.492e-04 1.091e-02 2.824e-02 3.411e-03 1.000e+01 3.669e-02
98 158 9.289e-04 2.005e-04 6.960e-03 9.830e-04 3.314e-03 1.000e+01 3.669e-02
99 159 1.056e-03 -1.275e-04 1.603e-02 1.388e-02 3.267e-03 1.000e+01 3.669e-02
100 160 9.250e-04 1.314e-04 4.536e-03 9.379e-04 3.156e-03 1.000e+01 3.669e-02
101 161 1.121e-03 -1.958e-04 1.631e-02 1.400e-02 3.131e-03 1.000e+01 3.669e-02
102 162 9.298e-04 1.910e-04 4.667e-03 9.119e-04 3.008e-03 1.000e+01 3.669e-02
103 163 1.176e-03 -2.458e-04 1.690e-02 1.491e-02 3.008e-03 1.000e+01 3.669e-02
104 164 9.480e-04 2.276e-04 5.003e-03 8.811e-04 2.933e-03 1.000e+01 3.669e-02
105 165 1.277e-03 -3.287e-04 1.800e-02 1.587e-02 2.917e-03 1.000e+01 3.669e-02
106 166 9.758e-04 3.008e-04 5.688e-03 9.685e-04 2.888e-03 1.000e+01 3.669e-02
107 168 9.826e-04 -6.794e-06 5.474e-03 9.985e-04 2.893e-03 1.000e+01 3.669e-02
108 170 9.885e-04 -5.864e-06 5.471e-03 1.016e-03 2.900e-03 1.000e+01 3.669e-02
109 172 9.938e-04 -5.325e-06 5.474e-03 1.026e-03 2.907e-03 1.000e+01 3.669e-02
110 174 9.996e-04 -5.740e-06 5.465e-03 1.081e-03 2.911e-03 1.000e+01 3.669e-02
111 176 1.006e-03 -6.619e-06 5.446e-03 1.115e-03 2.912e-03 1.000e+01 3.669e-02
112 177 1.364e-03 -3.582e-04 2.025e-02 1.687e-02 2.840e-03 1.000e+01 3.669e-02
113 178 1.029e-03 3.350e-04 5.829e-03 1.130e-03 2.825e-03 1.000e+01 3.669e-02
114 179 1.232e-03 -2.027e-04 2.130e-02 1.419e-02 2.726e-03 1.000e+01 3.669e-02
115 180 1.043e-03 1.894e-04 5.777e-03 9.490e-04 2.695e-03 1.000e+01 3.669e-02
116 181 1.154e-03 -1.114e-04 2.151e-02 3.154e-02 4.587e-03 1.000e+01 3.669e-02
117 182 1.046e-03 1.083e-04 8.989e-03 9.471e-04 2.549e-03 1.000e+01 3.669e-02
118 183 1.104e-03 -5.775e-05 2.513e-02 1.136e-02 2.441e-03 1.000e+01 3.669e-02
119 184 1.090e-03 1.321e-05 2.432e-02 1.144e-02 2.397e-03 1.000e+01 3.669e-02
120 185 1.071e-03 1.956e-05 2.407e-02 1.125e-02 2.355e-03 1.000e+01 3.669e-02
121 186 1.053e-03 1.786e-05 2.374e-02 1.117e-02 2.296e-03 1.000e+01 3.669e-02
122 187 1.035e-03 1.826e-05 2.341e-02 1.261e-02 2.281e-03 1.000e+01 3.669e-02
123 188 1.029e-03 5.248e-06 2.439e-02 1.257e-02 2.299e-03 1.000e+01 3.669e-02
124 189 9.849e-04 4.452e-05 2.881e-02 1.099e-02 2.275e-03 1.000e+01 3.669e-02
125 191 9.575e-04 2.745e-05 2.757e-02 1.135e-02 2.284e-03 1.000e+01 3.669e-02
126 192 9.289e-04 2.863e-05 2.790e-02 1.139e-02 2.279e-03 1.000e+01 3.669e-02
127 193 9.025e-04 2.640e-05 2.636e-02 1.168e-02 2.281e-03 1.000e+01 3.669e-02
128 194 8.843e-04 1.814e-05 2.540e-02 1.202e-02 2.282e-03 1.000e+01 3.669e-02
129 195 8.779e-04 6.402e-06 2.497e-02 1.238e-02 2.386e-03 1.000e+01 3.669e-02
130 196 8.804e-04 -2.437e-06 2.512e-02 1.268e-02 2.494e-03 1.000e+01 3.669e-02
131 197 8.853e-04 -4.976e-06 2.563e-02 1.279e-02 2.603e-03 1.000e+01 3.669e-02
132 198 8.878e-04 -2.497e-06 2.620e-02 1.273e-02 2.710e-03 1.000e+01 3.669e-02
133 199 8.841e-04 3.733e-06 2.660e-02 1.233e-02 2.812e-03 1.000e+01 3.669e-02
134 200 8.723e-04 1.180e-05 2.674e-02 1.149e-02 2.904e-03 1.000e+01 3.669e-02
135 201 8.539e-04 1.845e-05 2.665e-02 1.017e-02 2.983e-03 1.000e+01 3.669e-02
136 202 8.324e-04 2.145e-05 2.637e-02 8.368e-03 3.045e-03 1.000e+01 3.669e-02
137 203 8.111e-04 2.130e-05 2.597e-02 6.590e-03 3.086e-03 1.000e+01 3.669e-02
138 204 7.912e-04 1.990e-05 2.549e-02 6.312e-03 3.106e-03 1.000e+01 3.669e-02
139 205 7.727e-04 1.851e-05 2.500e-02 5.659e-03 3.108e-03 1.000e+01 3.669e-02
140 206 7.555e-04 1.721e-05 2.450e-02 4.701e-03 3.094e-03 1.000e+01 3.669e-02
141 207 7.403e-04 1.516e-05 2.396e-02 4.068e-03 3.066e-03 1.000e+01 3.669e-02
142 208 7.316e-04 8.678e-06 2.353e-02 4.260e-03 3.026e-03 1.000e+01 3.669e-02
143 209 7.096e-04 2.207e-05 2.454e-02 4.207e-03 3.010e-03 1.000e+01 3.669e-02
144 210 6.837e-04 2.586e-05 2.471e-02 3.679e-03 3.030e-03 1.000e+01 3.669e-02
145 212 6.734e-04 1.031e-05 2.315e-02 3.734e-03 3.087e-03 1.000e+01 3.669e-02
146 213 6.653e-04 8.096e-06 2.093e-02 3.984e-03 3.140e-03 1.000e+01 3.669e-02
147 214 6.564e-04 8.913e-06 1.802e-02 4.370e-03 3.189e-03 1.000e+01 3.669e-02
148 215 6.260e-04 3.040e-05 9.257e-03 6.177e-04 3.229e-03 1.000e+01 3.669e-02
149 216 6.288e-04 -2.764e-06 2.900e-02 3.408e-03 3.258e-03 1.000e+01 3.669e-02
150 217 6.140e-04 1.477e-05 4.156e-03 9.100e-04 3.283e-03 1.000e+01 3.669e-02
151 219 6.123e-04 1.628e-06 5.499e-03 5.262e-04 3.302e-03 1.000e+01 3.669e-02
152 221 6.108e-04 1.564e-06 3.710e-03 6.327e-04 3.315e-03 1.000e+01 3.669e-02
153 223 6.092e-04 1.602e-06 3.708e-03 5.823e-04 3.329e-03 1.000e+01 3.669e-02
154 225 6.072e-04 1.936e-06 3.703e-03 5.498e-04 3.341e-03 1.000e+01 3.669e-02
155 227 6.054e-04 1.803e-06 3.737e-03 5.209e-04 3.352e-03 1.000e+01 3.669e-02
156 229 6.037e-04 1.772e-06 3.755e-03 5.115e-04 3.362e-03 1.000e+01 3.669e-02
157 231 6.021e-04 1.611e-06 3.785e-03 5.054e-04 3.371e-03 1.000e+01 3.669e-02
158 233 6.006e-04 1.421e-06 3.788e-03 5.201e-04 3.379e-03 1.000e+01 3.669e-02
159 234 5.994e-04 1.195e-06 3.765e-03 5.865e-04 3.387e-03 1.000e+01 3.669e-02
160 235 5.984e-04 1.047e-06 3.678e-03 6.426e-04 3.393e-03 1.000e+01 3.669e-02
161 236 5.974e-04 1.037e-06 3.533e-03 6.977e-04 3.399e-03 1.000e+01 3.669e-02
162 237 5.962e-04 1.176e-06 3.370e-03 7.532e-04 3.405e-03 1.000e+01 3.669e-02
163 238 5.949e-04 1.323e-06 3.236e-03 7.926e-04 3.410e-03 1.000e+01 3.669e-02
164 239 5.934e-04 1.457e-06 3.145e-03 8.250e-04 3.414e-03 1.000e+01 3.669e-02
165 240 5.918e-04 1.581e-06 3.090e-03 8.573e-04 3.418e-03 1.000e+01 3.669e-02
166 241 5.901e-04 1.715e-06 3.060e-03 8.912e-04 3.422e-03 1.000e+01 3.669e-02
167 242 5.883e-04 1.857e-06 3.048e-03 9.274e-04 3.426e-03 1.000e+01 3.669e-02
168 243 5.862e-04 2.009e-06 3.047e-03 9.652e-04 3.429e-03 1.000e+01 3.669e-02
169 244 5.841e-04 2.166e-06 3.056e-03 1.004e-03 3.432e-03 1.000e+01 3.669e-02
170 245 5.818e-04 2.324e-06 3.070e-03 1.042e-03 3.434e-03 1.000e+01 3.669e-02
171 246 5.793e-04 2.478e-06 3.088e-03 1.079e-03 3.436e-03 1.000e+01 3.669e-02
172 247 5.767e-04 2.620e-06 3.110e-03 1.113e-03 3.437e-03 1.000e+01 3.669e-02
173 248 5.739e-04 2.745e-06 3.133e-03 1.144e-03 3.438e-03 1.000e+01 3.669e-02
174 249 5.711e-04 2.845e-06 3.156e-03 1.170e-03 3.439e-03 1.000e+01 3.669e-02
175 250 5.682e-04 2.915e-06 3.179e-03 1.191e-03 3.439e-03 1.000e+01 3.669e-02
176 251 5.652e-04 2.953e-06 3.201e-03 1.207e-03 3.439e-03 1.000e+01 3.669e-02
177 252 5.622e-04 2.958e-06 3.222e-03 1.218e-03 3.438e-03 1.000e+01 3.669e-02
178 253 5.593e-04 2.933e-06 3.242e-03 1.224e-03 3.437e-03 1.000e+01 3.669e-02
179 254 5.564e-04 2.884e-06 3.262e-03 1.226e-03 3.440e-03 1.000e+01 3.669e-02
180 255 5.536e-04 2.816e-06 3.280e-03 1.225e-03 3.457e-03 1.000e+01 3.669e-02
181 256 5.509e-04 2.736e-06 3.299e-03 1.221e-03 3.475e-03 1.000e+01 3.669e-02
182 257 5.482e-04 2.651e-06 3.319e-03 1.214e-03 3.492e-03 1.000e+01 3.669e-02
183 258 5.457e-04 2.566e-06 3.340e-03 1.206e-03 3.509e-03 1.000e+01 3.669e-02
184 259 5.432e-04 2.435e-06 3.361e-03 1.205e-03 3.526e-03 1.000e+01 3.669e-02
185 260 5.408e-04 2.426e-06 3.388e-03 1.192e-03 3.543e-03 1.000e+01 3.669e-02
186 261 5.384e-04 2.355e-06 3.417e-03 1.179e-03 3.560e-03 1.000e+01 3.669e-02
187 262 5.361e-04 2.299e-06 3.451e-03 1.165e-03 3.577e-03 1.000e+01 3.669e-02
188 263 5.339e-04 2.249e-06 3.488e-03 1.152e-03 3.593e-03 1.000e+01 3.669e-02
189 264 5.317e-04 2.208e-06 3.529e-03 1.139e-03 3.610e-03 1.000e+01 3.669e-02
190 265 5.295e-04 2.175e-06 3.574e-03 1.139e-03 3.626e-03 1.000e+01 3.669e-02
191 266 5.274e-04 2.150e-06 3.625e-03 1.149e-03 3.643e-03 1.000e+01 3.669e-02
192 267 5.252e-04 2.133e-06 3.679e-03 1.158e-03 3.659e-03 1.000e+01 3.669e-02
193 268 5.231e-04 2.124e-06 3.738e-03 1.165e-03 3.676e-03 1.000e+01 3.669e-02
194 269 5.210e-04 2.121e-06 3.801e-03 1.170e-03 3.692e-03 1.000e+01 3.669e-02
195 270 5.189e-04 2.124e-06 3.866e-03 1.172e-03 3.709e-03 1.000e+01 3.669e-02
196 271 5.167e-04 2.132e-06 3.932e-03 1.170e-03 3.725e-03 1.000e+01 3.669e-02
197 272 5.146e-04 2.144e-06 3.999e-03 1.163e-03 3.742e-03 1.000e+01 3.669e-02
198 273 5.124e-04 2.219e-06 4.067e-03 1.145e-03 3.758e-03 1.000e+01 3.669e-02
199 274 5.102e-04 2.193e-06 4.130e-03 1.129e-03 3.775e-03 1.000e+01 3.669e-02
200 275 5.080e-04 2.207e-06 4.188e-03 1.109e-03 3.791e-03 1.000e+01 3.669e-02
Warning: Maximum number of iterations has been exceeded.
Current function value: 5.080e-04
Constraint violation: 3.791e-03
Total delta_x: 3.471e-01
Iterations: 200
Function evaluations: 275
Jacobian evaluations: 201
Timer: Solution time = 1.14 min
Timer: Avg time per step = 341 ms
==============================================================================================================
Start --> End
Total (sum of squares): 3.290e+01 --> 5.080e-04,
Maximum absolute QS Two-Term objective value: 6.229e-01 --> 1.063e-02 (T^{3})
Minimum absolute QS Two-Term objective value: 1.964e-04 --> 3.044e-06 (T^{3})
Average absolute QS Two-Term objective value: 1.501e-01 --> 6.181e-04 (T^{3})
Maximum absolute QS Two-Term objective value: 6.229e-01 --> 1.063e-02 (normalized)
Minimum absolute QS Two-Term objective value: 1.964e-04 --> 3.044e-06 (normalized)
Average absolute QS Two-Term objective value: 1.501e-01 --> 6.181e-04 (normalized)
Maximum absolute Force error: 4.342e+01 --> 3.688e+03 (N)
Minimum absolute Force error: 4.390e-03 --> 2.197e-01 (N)
Average absolute Force error: 3.601e+00 --> 3.633e+02 (N)
Maximum absolute Force error: 4.262e-05 --> 3.620e-03 (normalized)
Minimum absolute Force error: 4.310e-09 --> 2.157e-07 (normalized)
Average absolute Force error: 3.535e-06 --> 3.566e-04 (normalized)
Aspect ratio: 8.000e+00 --> 8.018e+00 (dimensionless)
Elongation: 1.096e+00 --> 3.000e+00 (dimensionless)
Plasma volume: 3.084e-01 --> 3.085e-01 (m^3)
Plasma volume: 0.000e+00 --> 3.079e-04 (normalized error)
Maximum Rotational transform: 2.477e-01 --> 1.102e+00 (dimensionless)
Minimum Rotational transform: 2.477e-01 --> 1.102e+00 (dimensionless)
Average Rotational transform: 2.477e-01 --> 1.102e+00 (dimensionless)
my mirror ratio objective value: 2.398e-01 --> 1.882e-01 (Unknown)
my mirror ratio objective value: 1.982e-02 --> 0.000e+00 (normalized error)
R boundary error: 0.000e+00 --> 0.000e+00 (m)
Fixed pressure profile error: 0.000e+00 --> 0.000e+00 (Pa)
Fixed current profile error: 0.000e+00 --> 0.000e+00 (A)
Fixed Psi error: 0.000e+00 --> 0.000e+00 (Wb)
==============================================================================================================
As before, results can be improved by running for more iterations. Note the constraint violation may be larger than desired, so it can be helpful to call eq.solve() at the end to decrease the force error without changing the boundary.
[19]:
eqa.solve();
Building objective: force
Precomputing transforms
Building objective: lcfs R
Building objective: lcfs Z
Building objective: fixed Psi
Building objective: fixed pressure
Building objective: fixed current
Building objective: fixed sheet current
Building objective: self_consistency R
Building objective: self_consistency Z
Building objective: lambda gauge
Building objective: axis R self consistency
Building objective: axis Z self consistency
Number of parameters: 120
Number of objectives: 850
Starting optimization
Using method: lsq-exact
Optimization terminated successfully.
`ftol` condition satisfied. (ftol=1.00e-02)
Current function value: 1.151e-04
Total delta_x: 1.653e-01
Iterations: 4
Function evaluations: 5
Jacobian evaluations: 5
==============================================================================================================
Start --> End
Total (sum of squares): 3.384e-03 --> 1.151e-04,
Maximum absolute Force error: 3.688e+03 --> 7.428e+02 (N)
Minimum absolute Force error: 2.197e-01 --> 8.577e-02 (N)
Average absolute Force error: 3.633e+02 --> 6.959e+01 (N)
Maximum absolute Force error: 1.158e-02 --> 2.332e-03 (normalized)
Minimum absolute Force error: 6.898e-07 --> 2.692e-07 (normalized)
Average absolute Force error: 1.140e-03 --> 2.184e-04 (normalized)
R boundary error: 0.000e+00 --> 1.841e-18 (m)
Z boundary error: 0.000e+00 --> 5.225e-18 (m)
Fixed Psi error: 0.000e+00 --> 0.000e+00 (Wb)
Fixed pressure profile error: 0.000e+00 --> 0.000e+00 (Pa)
Fixed current profile error: 0.000e+00 --> 0.000e+00 (A)
Fixed sheet current error: 0.000e+00 --> 0.000e+00 (~)
==============================================================================================================
From the Boozer plot below we see that we are already doing fairly good for QS:
[20]:
plot_boozer_surface(eqa);

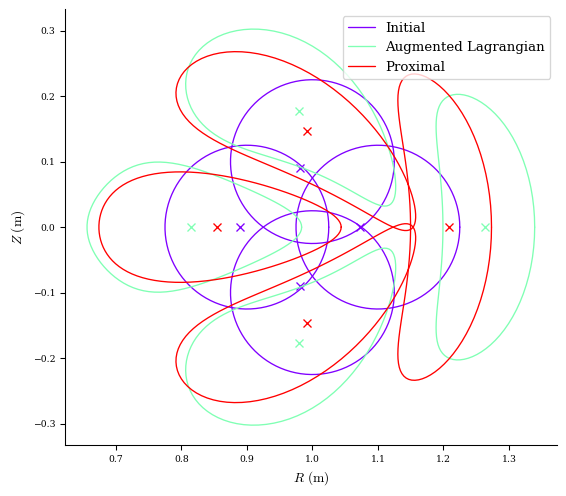

As a final comparison, we can look at the boundary shapes obtained by the different methods. We see that the final shapes are fairly similar, with the proximal method giving slightly more elongation and tighter curvature. We could include additional objectives or constraints to try to reduce this if desired.
[21]:
plot_boundaries(
[eq0, eqa, eqfam[-1]], labels=["Initial", "Augmented Lagrangian", "Proximal"]
);
Further example scripts for precise QS optimization can be found in the desc/examples folder.
